From acquisition to images

Load Gold → inspect mean diffraction, BF, ADF and DPC → reconstruct SSB phase. Everything needed for a first reconstruction is on this page, using one acquisition throughout. No QEM conversion is required first.

Follow the installation guide and install huggingface_hub for the download. QuantEM selects the available GPU automatically. For probe images, fitted coefficients, search trials, upsampling, and saved results, use the advanced Gold tutorial.

Development API installation

Use the paired development sources (quantem.gpu 0.0.1rc18.dev0 and quantem.widget 0.0.1rc44.dev0). These are source candidates, not a package-index release; use branch oct-24-direct-iterative-api in both repositories and install both checkouts, or install the matching supplied wheels. An older widget does not provide the method and regularization controls.

Get the Gold data

The public Gold acquisition contains a 512 × 512 scan and 48 × 48 detector. Only the detector was binned by four before upload. The download is about 1.2 GB, is MIT licensed, and stays in data/ for reuse.

from pathlib import Path
import json

from huggingface_hub import snapshot_download
from quantem.gpu import io, detector, dpc, DirectPtycho
from quantem.core.visualization import show_2d

snapshot_download(
    "bobleesj/quantem-data", repo_type="dataset",
    revision="5925e4b49b2ca28ff82d6d5a6b9a8bfea9edfb20",
    allow_patterns="4dstem/gold_512_npy_bin4/*", local_dir="data", token=False,
)
folder = Path("data/4dstem/gold_512_npy_bin4")
metadata = json.loads((folder / "meta.json").read_text())

The metadata supplies 300 kV, a 30 mrad convergence semiangle, and 1.84 mrad per detector pixel. Its 0.5 Å scan spacing was inferred from a sibling acquisition, not independently calibrated for this file. Scale bars below retain that qualification.

Load and view the mean diffraction pattern

data = io.load(folder / "data.npy")
mean_dp = detector.mean(data)
show_2d(
    mean_dp, title="Gold mean diffraction pattern", norm="log_auto",
    cmap="inferno",
    scalebar={"sampling": metadata["sampling"][2], "units": "mrad"},
)

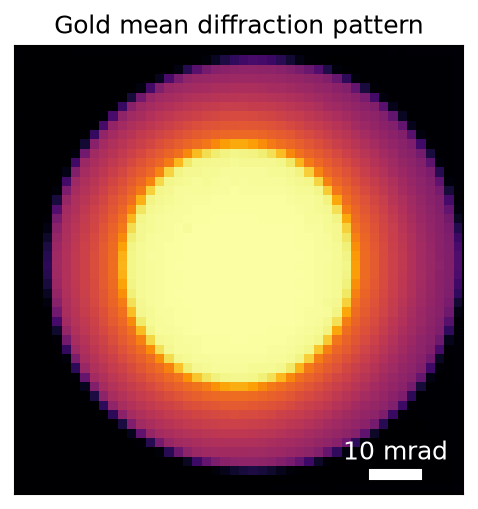

This averages all scan positions, leaving the 48 × 48 detector image. Inspect the bright central disk and surrounding scattering before reconstructing. Logarithmic display contrast makes weak scattering visible. The scale is angular: detector pixels describe scattering directions, not sample positions.

View bright field, dark field, and DPC

For an automatic static BF/DF/ADF and mean-diffraction comparison, use detector.show(data). Medium panels and two columns are the defaults:

detector.show(data, size="medium", columns=2, cmap="inferno")

Choose size="small", "large" or "xlarge" to resize each panel; set columns=1 for a column or rows=1 for a row. Rows are calculated from columns unless supplied explicitly. Sizes match the Show2D/Show3D panel proportions without reducing array resolution. Set cmap="gray" to change colors or save="detector-images.png" to save it. The scan images use square-root contrast; mean diffraction uses logarithmic contrast. Override these with norm and diffraction_norm, respectively. Use the individual detector calls below when you need arrays or custom collection angles.

bf = detector.bf(data)
adf = detector.adf(data)
dpc_result = dpc.run(data)
show_2d(
    [bf, adf, dpc_result.phase], title=["BF", "Annular dark field", "Integrated DPC"],
    norm=["power_sqrt", "power_sqrt", "minmax"], cmap="inferno",
    scalebar={"sampling": metadata["sampling"][0], "units": "Å"},
)
dpc_result.scan_detector_rotation_mod180_deg, dpc_result.scan_detector_rotation_flipped  # degrees, modulo 180; detector-axis swap flag

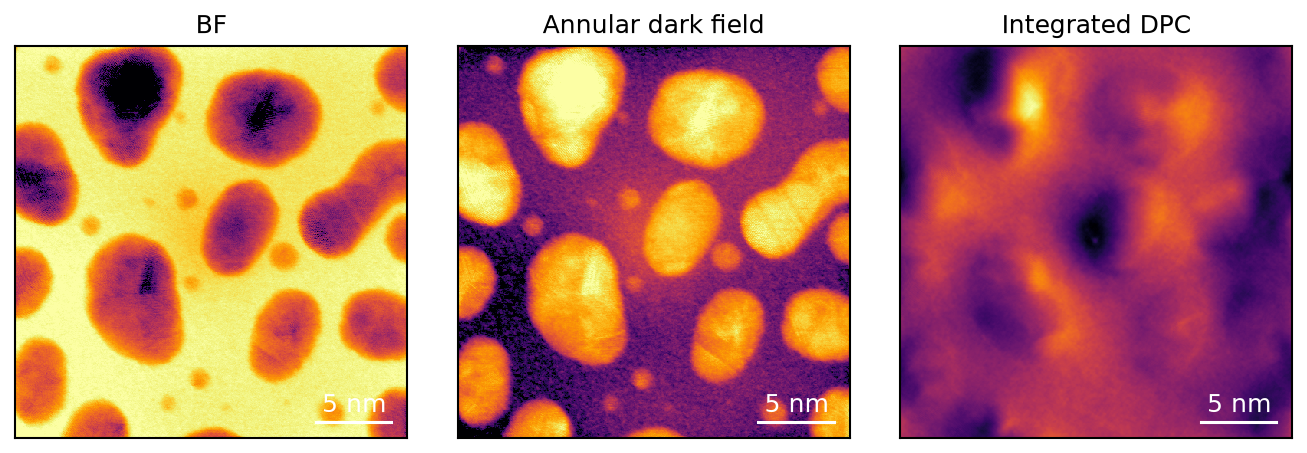

All three panels show the same 512 × 512 scan. BF integrates the central disk; ADF is annular dark field, integrating the surrounding ring. The detector finds the disk automatically. Integrated DPC comes from the measured center-of-mass shifts. Its displayed contrast is not calibrated in radians. Each panel uses independent contrast: square-root for BF/ADF and linear for DPC.

DPC estimates the scan–detector rotation, known only modulo 180 degrees. This Gold acquisition reports scan_detector_rotation_flipped=False, so pass the angle and the flag directly to SSB; fit_aberrations(check_rotation=True) settles the 180-degree branch. SSB raises if scan_detector_rotation_flipped is True. For other data, check that value first: a detector-axis swap must be resolved before reusing the angle. SSB does not run DPC automatically.

Reconstruct SSB phase

Reuse the same acquisition and the DPC rotation above.

ptycho = DirectPtycho(
    data,
    voltage_kV=metadata["voltage_kV"],  # kV
    semiangle_mrad=metadata["probe_semiangle_mrad"],  # mrad
    scan_sampling_A=metadata["sampling"][:2],  # Å per scan pixel, (row, col)
    detector_sampling_mrad=metadata["sampling"][2:],  # mrad per detector pixel, (row, col)
    scan_detector_rotation_deg=dpc_result.scan_detector_rotation_mod180_deg,  # degrees
    scan_detector_rotation_flipped=dpc_result.scan_detector_rotation_flipped,
)
aberrations = ptycho.fit_aberrations()
result = ptycho.reconstruct(aberrations, upsampling=1)
show_2d(
    result.phase, title="Gold SSB phase (rad)", cmap="inferno", cbar=True,
    scalebar={"sampling": result.object_sampling_A[1], "units": "Å"},
)

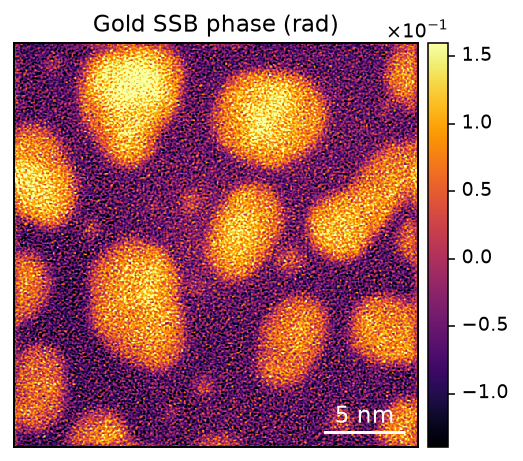

SSB finds the bright-field disk automatically. fit_aberrations() is the default model-based, tilt-corrected fit: on the native grid it fits defocus and twofold astigmatism together with the sample tilt and a depth spread, keeping the parameters whose predicted bright-field data agree best with the measurement. reconstruct() uses those parameters without repeating the search. Voltage, sampling, and convergence angle stay fixed.

Call	Method	Use it for
fit_aberrations()	model-based, tilt-corrected, refined through fifth order	the default: every fit
fit_aberrations(search="primary", tilt=False)	model-based, tilt and depth spread held at 0	thin, untilted samples, or to see what tilt correction changes

Both refine on exact derivatives of the model agreement (SSB fit methods).

This is the 512 × 512 native reconstruction: 0.5 Å per output pixel and a 25.6 nm square field using the supplied calibration. Experimental Gold has no known specimen potential here; the image does not establish quantitative phase accuracy in the thicker particles. Use 1× for this example: the current 4× implementation produces stripes. The advanced comparison shows the same region at both factors.

Data axes are (scan_rows, scan_cols, detector_rows, detector_cols). To view one measured pattern, use show_2d(data[256, 256], norm="power_sqrt", cmap="inferno"). The advanced disk-geometry example draws the fitted center and radius on the mean pattern. I/O covers detector crops and 5D acquisition selection; Detector and DPC covers manual radii and physical-angle units.

Finish, or inspect further

Keep the session open for the advanced tutorial:

Inspect or save	Example
Fitted coefficients and search candidates	Read the aberration search
Phase beside the model probe	Build the probe image
Native versus 4× phase	Compare the same field and particle
Measurements and calibration in one file	Save as QEM

When finished, close the session before its acquisition:

ptycho.close()
data.close()

Review rotation and defocus together

For a calibrated SSB session, compare the two 180-degree rotation candidates with negative and positive C10 search intervals:

comparison = ptycho.scan_rotations(defocus=True, zoom=3, size="large")

Use report=False to compute without displaying the comparison; comparison.report() gives the pandas DataFrame. The default report=True shows images, histograms and the table in this one call.

This runs four independent 200-trial joint fits with automatic refinement, retaining all valid BF pixels and the current field of view. It preserves the session’s scientific parameters. The figure pairs Auto-sampled phases with native-pixel histograms, sharing contrast and the displayed region. Use comparison.show(zoom=1) for the full field without refitting.

The result remains unresolved without an independent constraint. Similar losses or phase polarity alone do not establish the physical rotation. Both sign intervals include zero, so a zero-boundary fit does not determine a sign. Compare an independently known focus only at the same reference plane and with the convention f = -C10. Depth spread is a fitted model parameter.

Browse reconstructed focus images

ptycho.show("focus") uses the existing Show2D gallery. Pass layout="stack" to scroll through defocus in Show3D, or interactive=False for static core views. See the SSB view options for focus spacing, depth values, region selection and panel sizes.

Detector calibration plots use the same display vocabulary:

detector_fit = data.calibration.fit_detector_sampling()
detector_fit.show(size="medium", cmap="inferno", save="detector-fit.png")

The fit view has one panel. Detector and SSB galleries additionally accept rows or columns. For example, ptycho.show("focus", mode="static", columns=2, cmap="inferno", save="focus.png") exports the focus comparison without changing its reconstructed pixels.
