Getting started

Statement of need

cifkit uses .cif files by offering higher-level functions and variables that enable users to perform complex tasks efficiently with a few lines of code. cifkit distinguishes itself from existing libraries by offering higher-level functions and variables that allow solid-state synthesists to obtain intuitive and measurable properties impactful properties. It facilitates the visualization of coordination geometry from each site using four coordination determination methods and extracts physics-based features like volume and packing efficiency—crucial for structural analysis in machine learning tasks. Moreover, cifkit extracts atomic mixing information at the bond pair level, tasks that would otherwise require extensive manual effort using GUI-based tools like VESTA, Diamond, and CrystalMaker.

cifkit further enhances its utility by providing functions for sorting, preprocessing, and analyzing the distribution of underlying CIF files. It systematically addresses common issues in CIF files from databases, such as incorrect loop values and missing fractional coordinates, by standardizing and filtering out ill-formatted files. The package also preprocesses atomic site labels, transforming labels like 'M1' to 'Fe1' in files with atomic mixing for improved visualization and pattern matching. Beyond error correction, cifkit offers functionalities to copy, move, and sort files based on attributes such as coordination numbers, space groups, unit cells, and shortest distances. It excels in visualizing and cataloging CIF files, organizing them by supercell size, tags, coordination numbers, elements, and atomic mixing.

TL;DR

cifkit provides higher-level functions in just a few lines of code.

  • Coordination geometry - cifkit provides functions for visualing coordination geometry from each site and extracts physics-based features like volume and packing efficiency in each polyhedron.
  • Atomic mixing - cifkit extracts atomic mixing information at the bond pair level—tasks that would otherwise require extensive manual effort using GUI-based tools like VESTA, Diamond, and CrystalMaker.
  • Filter - cifkit offers features for preprocessing. It systematically addresses common issues in CIF files from databases, such as incorrect loop values and missing fractional coordinates, by standardizing and filtering out ill-formatted files. It also preprocesses atomic site labels, transforming labels such as 'M1' to 'Fe1' in files with atomic mixing.
  • Sort - cifkit allows you to copy, move, and sort .cif files based on attributes such as coordination numbers, space groups, unit cells, shortest distances, elements, and more.

Processing speed expectation

Processing approximately 10,000 .cif files on a standard laptop (iMac with M1 chip) may take about 30 to 60 minutes. At this rate, we can process nearly all .cif files within 1–2 days.

Installation

Python 3.10, 3.11, 3.12 are supported.

Python - Version PyPi version Conda version

pip install

pip install cifkit

Overview

cifkit provide two primary classes: Cif and CifEnsemble.

Cif

Cif is initialized with a .cif file path. It parses the .cif file, generates supercells, and computes nearest neighbors. It also determines coordination numbers using four different methods and generates polyhedrons for each site.

The example below uses cifkit to visualize the polyhedron generated from each atomic site based on the coordination number geometry.

from cifkit import Cif

cif = Cif("your_cif_file_path")
site_labels = cif.site_labels

# Loop through each site label
for label in site_labels:
    # Dipslay each polyhedron, .png saved for each label
    cif.plot_polyhedron(label, is_displayed=True)

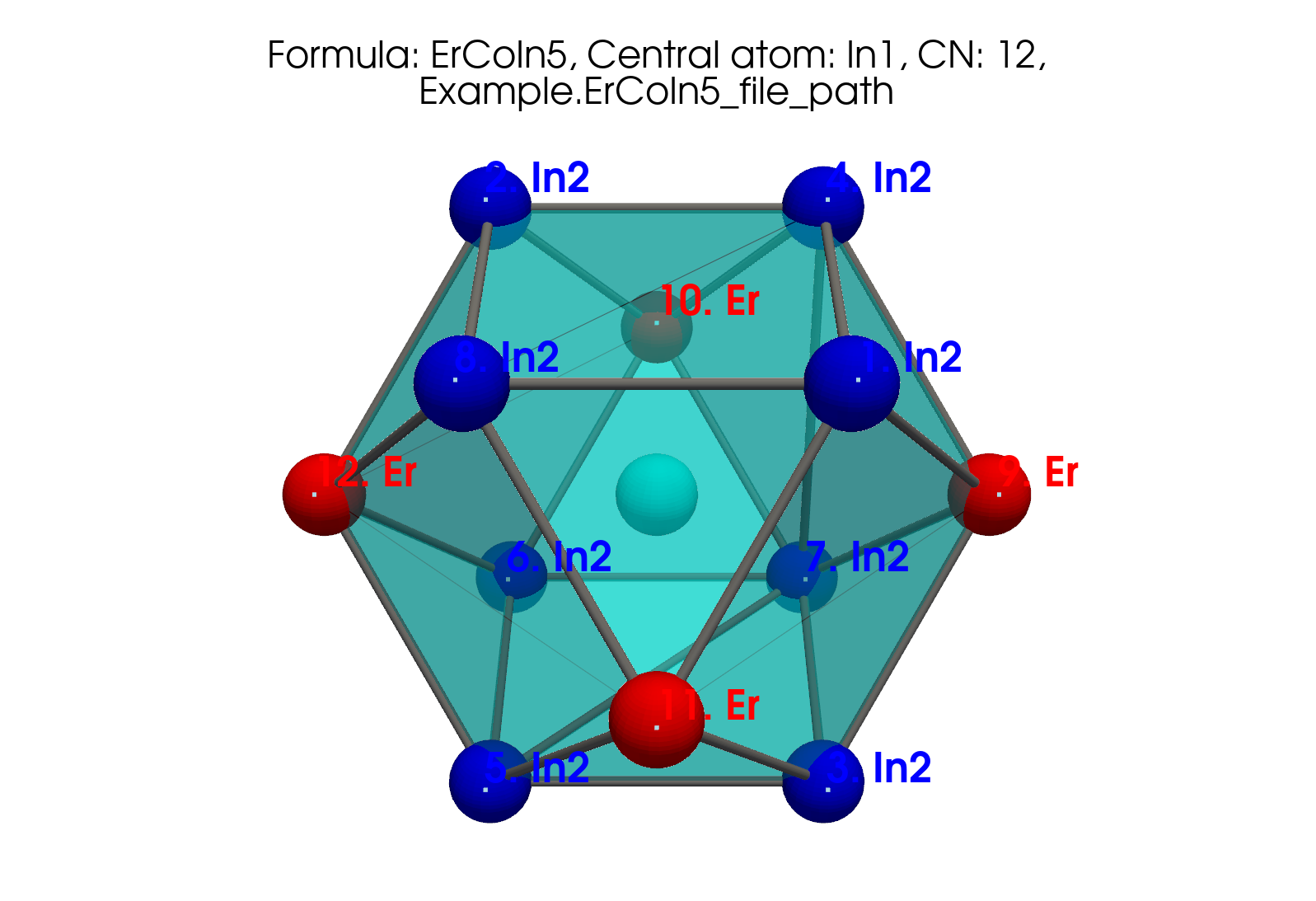

Polyhedron generation

For more, visit https://bobleesj.github.io/cifkit/notebooks/01_cif for a full tutorial with an interactive Google Codelab link.

CifEnsemble

CifEnsemble is initialized with a folder path containing .cif files. It identifies unique attributes, such as space groups and elements, across the .cif files, moves and copies files based on these attributes. It generates histograms for all attributes.

The following example generates a distribution of structure.

from cifkit import CifEnsemble

ensemble = CifEnsemble("your_cif_containing_folder_path")
ensemble.generate_structure_histogram()

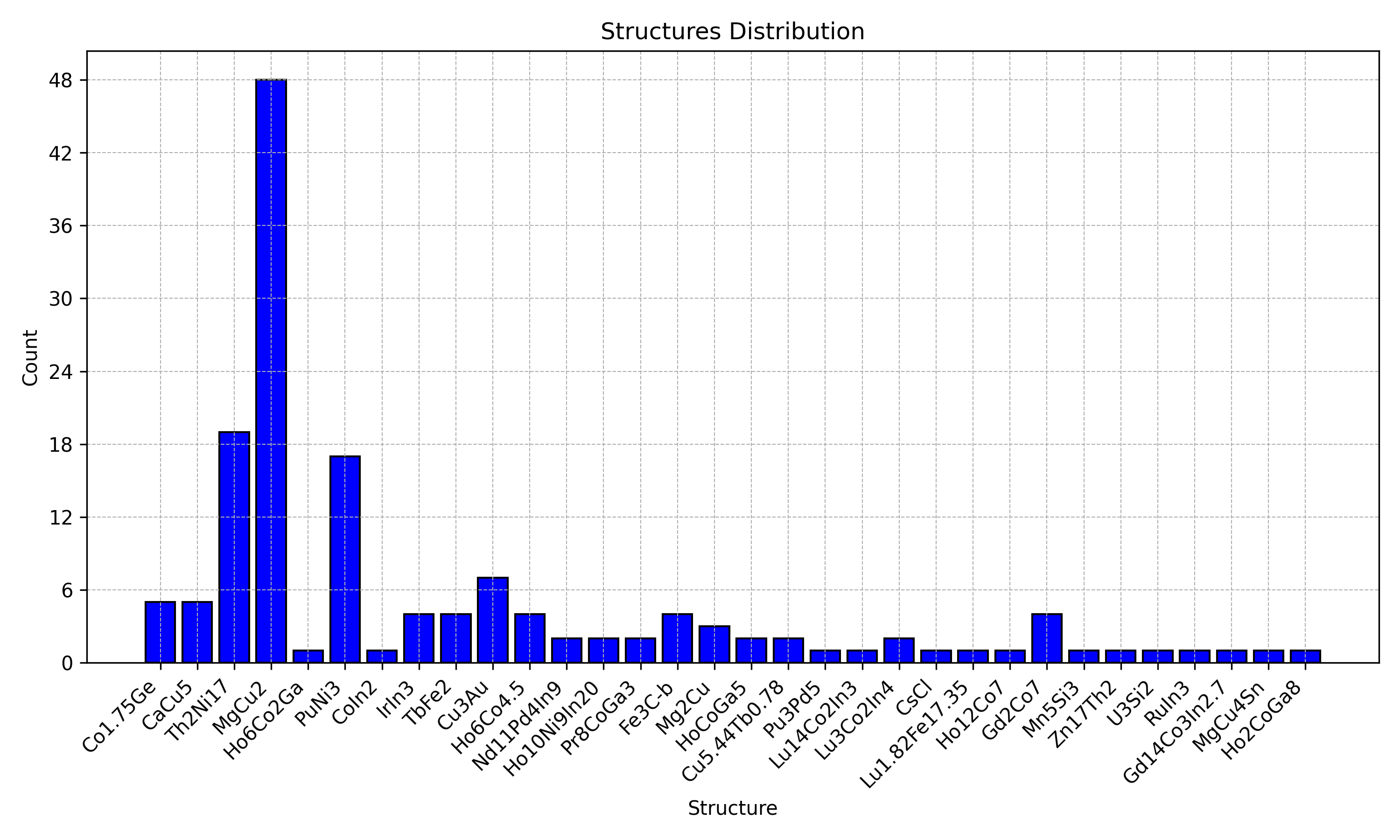

structure distribution

Basde on your visual histogram above, you can copy and move .cif files based on specific attributes:

# Return file paths matching structures either Co1.75Ge or CoIn2
ensemble.filter_by_structures(["Co1.75Ge", "CoIn2"])

# Return file path matching CeAl2Ga2
ensemble.filter_by_structures("CeAl2Ga2")

For more, visit https://bobleesj.github.io/cifkit/notebooks/02_cif_ensemble/ for a full tutorial with an interactive Google Codelab link.

Research projects using cifkit

The below projects uses the Cif and CifEnsemble classes for research applications.

  • CIF Bond Analyzer (CBA) - extract and visualize bonding patterns - DOI | GitHub | Poster
  • Structure Analysis/Featurizer (SAF) - build geometric features for binary, ternary compounds - GitHub
  • CIF Cleaner - move, copy .cif files based on attributes GitHub

How to ask for help

cifkit is also designed for experimental materials scientists and chemists.

How to contribute to cifkit

Here is how you can contribute to the cifkit project if you found it helpful:

  • Star the repository on GitHub and recommend it to your colleagues who might find cifkit helpful as well. Star GitHub repository
  • Create a new issue for any bugs or feature requests here
  • Fork the repository and consider contributing changes via a pull request. Fork GitHub repository. Check out CONTRIBUTING.md for instructions.
  • If you have any suggestions or need further clarification on how to use cifkit, please reach out to Bob Lee (@bobleesj).

Contributors

cifkit has been greatly enhanced thanks to the contributions from a diverse group of researchers:

  • Anton Oliynyk: original ideation with .cif files
  • Alex Vtorov: tool recommendation for polyhedron visualization
  • Danila Shiryaev: testing as beta user
  • Fabian Zills (@PythonFZ): suggested tooling improvements
  • Emil Jaffal (@EmilJaffal): initial testing and bug report
  • Nikhil Kumar Barua: initial testing and bug report
  • Nishant Yadav (@sethisiddha1998): initial testing and bug report
  • Siddha Sankalpa Sethi (@runzsh): initial testing and bug report in initial testing and initial testing and bug report

We welcome all forms of contributions from the community. Your ideas and improvements are valued and appreciated.

Citation

Please consider citing cifkit if it has been useful for your research:

Note: the cifkit manuscript is also under reviewed by the Journal of Open Source Software.
